Unmanaged Fast PoE Switch/

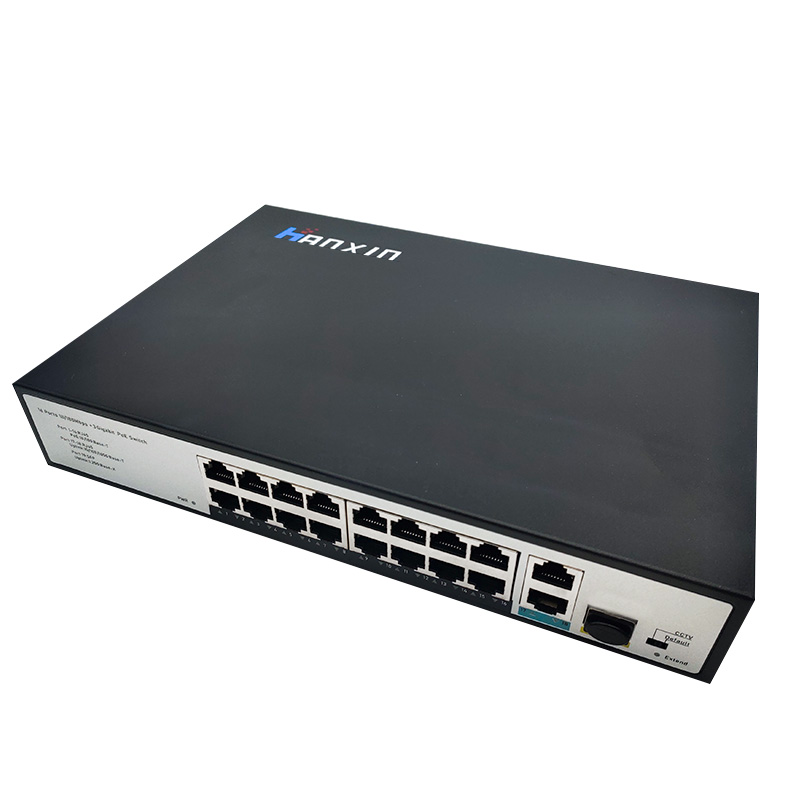

16 Ports 10/100Mbps PoE Switch with 2 Gigabit RJ45 and 1 SFP HX316EP-2G1SFP

Key Features:

Ports: Provide 16*10/100Mbps PoE ports and 2 *1000Mbps Uplink and 1*1000Mbps SFP port

PoE Standard: IEEE802.3af/at Power over Ethernet (PoE) Compliant

Total Power: Total power budget of 200W and 30W for all singe PoE ports

Self-adaption: RJ45 port supports 10/100Mbps Auto MDI/MDIX

Extend Mode: Extend PoE up to 250m on one single cable

Wide Application: Designed for Wifi AP and IP Security camera.VoIP etc

Surge protection: Protect the device from lighting surges and others electrical hazards

Considerate Design: Exquisite compact size with fanless design

Easy to use: Plug and play, No configuration required

  • Product Detail
  • Application
  • FAQs
  • Packing & Delivery

Versatile PoE Port

Featuring 16* 10/100Mbps PoE ports which support IEEE802.3af/at standard and 2 * 1000Mbps Uplink and 1 SFP ports. the Benchu Group PoE switch provides Maximun power budget of 200W and 30W for single PoE ports sepectively,allowing users to have several different Networking products configured

Flexible Extend Mode

With the extend mode, the PoE Switch Series is able to offer more flexible choices for long range transmission, extending the distance up to 250m, which is greatly helpful to bring better user experience.

Surge Protection Design

Reaching 6KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.

Gigabit SFP Uplink Port

With SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra high speed data transferring, Beside the SFP can transmitte the date with Max 100Km distance with more economic solution.

Technical Datasheet

Hardware Specifications
Connector16 10/100BASE-T RJ45 auto MDI/MDIX ports
2 10/100/1000BASE-T RJ45 auto MDI/MDIX ports
1 1000 Base-X SFP Slots
PoE Port16 10/100Mbps POE PSE port
SFPSinge fiber/Dual fiber supported. Distance vary the module
Thermal FanFanless Design
LED indicatorsPower Indicator: PWR(green).
Network Indicator: Link(yellow)
PoE Working Indicator: PoE(green)
Switch ArchitectureStore and Forward
Transmission modelIEEE802.3X full-duplex and Backpressure half-duplex
Switch Performance  Backplane bandwidth:9.2Gbps
Packet forwarding rate:6.85Mpps
MAC address :4k
Power requirementAC100-240V 50/60Hz
ESD Protection6KV ESD
Dimension(W×D×H)310mm x 180mm x 44.5mm(12.2in x 7.09in x 1.75in)
Power over Ethernet (PoE) Specifications
Network standardIEEE802.3i 10 BASE-T
IEEE802.3u 100 BASE-TX
IEEE802.3x Flow Control
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
IEEE802.3az EEE
PoE StandardIEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Supply Type1/2(+), 3/6(-) End-span
PoE Power OutputPer Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)
PoE Power budget200W
SafetyFCC Part15 Class A,CE.RoHs
Environment specificationOperating temperature: -20℃~55℃,operating humidity: 5%~95%
Storage temperature: -40℃~75℃,storage humidity: 5%~95%

Ordering  Information

HX316EP-2G1SFP16 Ports 10/100Mbps PoE switch with 2 Gigabit Uplink and 1 SFP,6KV surge protection,IEEE802.3af/at


1.Are you factory or trading company?
We have 2 big factories, one is for fiber optic cable, the other one is for communication equipments,so we can offer you high quality ,factory price and fast delivery. Welcome to visit our factory, we can pick you up from airport.
2. Can I buy samples before placing orders?
Yes.We are happy to send you sample to test quality.
3.What is your lead time?
-For usual products, we have stock, we can ship out within 3 days. If we don’t have stock,It depends on the quantity , normally 7 days to 15 days.
4.What is your payment term?
30% as deposit, balance before delivery. Or balance againest copy of BL.
5.What is the shipping method?
-By sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
6.Can you offer ODM&OEM?
-Yes, we accept ODM&OEM.We have our own R&D team with 18 years experience.

The bulk cargo of optical fiber equipment can be transported by air or by sea; the whole container can be transported by sea. The shipping time for conventional goods is 3-5 days, and OEM goods are generally shipped within 7-10 days. All packaging is in accordance with customer requirements.
