Unmanaged Fast PoE Switch/

8 Ports 10/100Mbps PoE Switch with 2 Gigabit RJ45 and 1 SFP Uplink HX308EP-2G1SFPN

---  8 port 10/100BASE-T  RJ45 copper of which 8 port with 802.3at PoE+ injector function ---  2 port 10/100/1000BASE-T  Gigabit RJ45 Uplink ---  1-1.25GBASE-X mini-GBIC/SFP slots ---  Fully IEEE802.3af/at standard compliant. ---  Support PoE power up to 15.4/25.5W for each PoE ports. ---  Support 250m PoE distance transmission ---  Plug & Play. No configuration required. ---  Reliable and great value. ---  6KV Surge protection

  • Product Detail
  • Application
  • FAQs
  • Packing & Delivery

Cost-optimized,Fiber Ethernet Switch for PoE Networking

This gigabit PoE Fiber switch provides power and data from a single point, using Power over Ethernet(PoE) over a single Cat5 cable. HX308EP-2G1SFP series features 8ch 10/100M PoE ports with 2 gigabit RJ45 and 1 SFP Uplink and supply industry-standard IEEE 802.3af/at power. It also offers a simple, cost-effective and non-blocking wire-speed performance. It comes with a 11-inch compact metal housing, suitable for desktop deployment in Network Security application.


Flexible Extend Mode
Benchu group 8 Port PoE Switch (HX308EP-2G1SFP) With the two model(Default.Extend) optional modes available. the PoE Switch Series is able to offer more flexible choices for long range transmission, extending the distance up to 250m, which is greatly helpful to bring better user experience.

Three Gigabit Uplink Ports

The 8 port PoE switch (HX308EP-2G1SFP) provides two extra Gigabit TP ports and one 1000BASE-X SFP interface  that enable the network administrators to increase their network bandwidth to relieve traffic congestion when the two 10/100/1000BASE-T and one 1000BASE-X uplink port are used to connect devices, such as NVR, video streaming server, NAS and more. With the combo design, the administrators can easily connect network devices no matter how large the network expansion is.

The additional one mini-GBIC SFP slots built in the switch support dual speed, 1000BASE-SX/LX SFP fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) and to 20/40/60/100/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Surge Protection
This PoE switch is based on the IEC61643-21:2000 standard,Reaching 6KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.

Plug and Power Network Deployment

All of the RJ45 copper interfaces in this PoE switch support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

Model HX308EP-2G1SFP
Hardware Specifications
Connector8 10/100BASE-T RJ45 auto MDI/MDIX ports

2 10/100/1000BASE-T RJ45 auto MDI/MDIX ports

1 1000 Base-X SFP Slots

PoE Port8 10/100Mbps POE PSE port
SFPSinge fiber/Dual fiber supported. Distance vary the module
Thermal FanFanless Design
LED indicatorsPower Indicator: PWR(green).

Network Indicator: Link(yellow)

PoE Working Indicator: PoE(green)

Switch ArchitectureStore and Forward
Transmission modelIEEE802.3X full-duplex and Backpressure half-duplex
Switch PerformanceBackplane bandwidth7.6Gbps
Packet forwarding rate5.65Mpps
MAC address4k
Power requirementAC100-240V 50/60Hz
ESD Protection6KV ESD
Dimension(W×D×H)202mm x 104mm x 44.5mm(7.95in x 4.09in x 1.75in)
Power over Ethernet (PoE) Specifications
Network standardIEEE802.3i 10 BASE-T

IEEE802.3u 100 BASE-TX

IEEE 802.3ab Gigabit 1000BASE-T

IEEE802.3x Flow Control

IEEE802.3az EEE

PoE StandardIEEE 802.3af Power over Ethernet/PSE

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Supply Type1/2(+), 3/6(-) End-span
PoE Power OutputPer Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)

Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

PoE Power budget120W
SafetyFCC Part15 Class A,CE.RoHs
Environment specificationOperating temperature: -20℃~55℃,operating humidity: 5%~95%
Storage temperature: -20℃~75℃,storage humidity: 5%~95%

Ordering Information

HX308EP-2G1SFP8 Ports 10/100Mbps PoE swtich with 2 Gigabit RJ45 and1 SFP Uplink ,6KV surge protection,IEEE802.3af/at

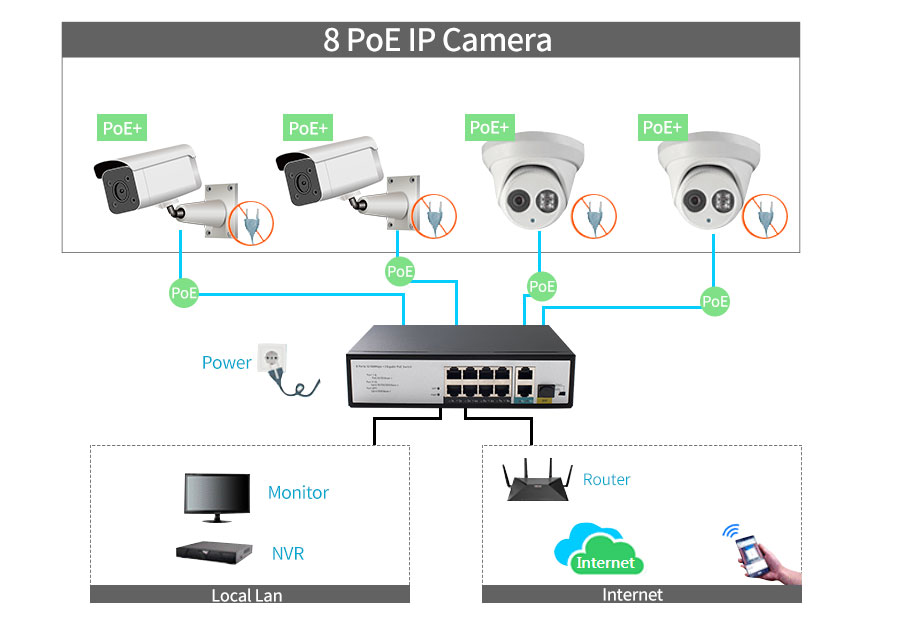

Perfectly Integrated Solution for PoE IP Security solution Benchu Group 11 ports PoE swtich provides eight 802.3at/af PoE ports for catering to small-scale home and SOHO IP surveillance networks at a lower total cost. The HX308EP-2G1SFP comes with a high-performance switch architecture and 96-watt PoE power budget. The recorded video files from the 8 PoE IP cameras can be powered by the HX308EP-2G1SFP and saved in the 8-channel NVR system or using surveillance software to perform comprehensive security monitoring. Besides it also offer 3 more Ethernet Uplink to server like NVR system or Public server Group. IP Office Department/Workgroup PoE Switch solution To further expand the office premises, the additional IP telephones required could be installed at less cost via the PoE IP phone system, better than the traditional circuit wiring telephony system. The Benchu Group HX308EP series PoE Switch helps enterprises to create an integrated data, voice, and powered network. The IEEE 802.3af/at compliant IP phones can be installed without the need of an additional power cable because the power can be provided via the standard Ethernet cable from the connected PoE switch, in this case,VoIp Phone deployment

1.Are you factory or trading company?
We have 2 big factories, one is for fiber optic cable, the other one is for communication equipments,so we can offer you high quality ,factory price and fast delivery. Welcome to visit our factory, we can pick you up from airport.
2. Can I buy samples before placing orders?
Yes.We are happy to send you sample to test quality.
3.What is your lead time?
-For usual products, we have stock, we can ship out within 3 days. If we don’t have stock,It depends on the quantity , normally 7 days to 15 days.
4.What is your payment term?
30% as deposit, balance before delivery. Or balance againest copy of BL.
5.What is the shipping method?
-By sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
6.Can you offer ODM&OEM?
-Yes, we accept ODM&OEM.We have our own R&D team with 18 years experience.

The bulk cargo of optical fiber equipment can be transported by air or by sea; the whole container can be transported by sea. The shipping time for conventional goods is 3-5 days, and OEM goods are generally shipped within 7-10 days. All packaging is in accordance with customer requirements. Shipping choice
