Unmanaged Gigabit PoE Switch/

16 Ports Gigabit PoE Switch with 2 Gigabit Combo Uplink HX316GP-2G2SFP

Ports: Provide 16*10/100/1000Mbps PoE ports and 4 *1000Mbps Combo Uplink
PoE Standard: IEEE802.3af/at Power over Ethernet (PoE) Compliant
Total Power: Total power budget of 300W and 30W for all singe PoE ports
Self-adaption: RJ45 port supports 10/100Mbps Auto MDI/MDIX
Extend Mode: Extend PoE up to 250m on one single cable
Wide Application: Designed for Wifi AP and IP Security camera.VoIP etc
Surge protection: Protect the device from lighting surges and others electrical hazards
Considerate Design: Rack mount installation with fanless design
Easy to use: Plug and play, No configuration required

  • Product Detail
  • Application
  • FAQs
  • Packing & Delivery

Versatile PoE Port

Featuring 16* 10/100/1000Mbps PoE ports which support IEEE802.3af/at standard and 4 * 1000Mbps Uplink and 4 Gigabit SFP ports. the Benchu Group PoE switch provides Maximun power budget of 300W and 30W for single PoE ports sepectively ,allowing users to have several different Networking products configured

Flexible Extend Mode

With the extend mode, the PoE Switch Series is able to offer more flexible choices for long range transmission, extending the distance up to 250m, which is greatly helpful to bring better user experience.

Surge Protection Design

Reaching 6KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.

Gigabit SFP Uplink Port

With 4 SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra high speed data transferring, Beside the SFP can transmitte the date with Max 100Km distance with more economic solution.

Technical Datasheet

Model HX316GP-2G2SFP
Hardware Specifications
Connector16 10/100/1000BASE-T RJ45 auto MDI/MDIX ports
2 10/100/1000BASE-T RJ45 auto MDI/MDIX ports
2 1000 Base-X SFP Slots
PoE Port16 10/100/1000Mbps POE PSE port
SFPSinge fiber/Dual fiber supported. Distance vary the module
Thermal FanFanless Design
LED indicatorsPower Indicator: PWR(green).
Network Indicator: Link(yellow)
PoE Working Indicator: PoE(green)
Switch ArchitectureStore and Forward
Transmission modelIEEE802.3X full-duplex and Backpressure half-duplex
Switch Performance  Backplane bandwidth:9.2Gbps
Packet forwarding rate:6.85Mpps
MAC address :4k
Power requirementAC100-240V 50/60Hz
ESD Protection6KV ESD
Dimension(W×D×H)440mm x 290mm x 44.5mm(17.32in x 11.42in x 1.75in)
Power over Ethernet (PoE) Specifications
Network standardIEEE802.3i 10 BASE-T
IEEE802.3u 100 BASE-TX
IEEE802.3x Flow Control
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
IEEE802.3az EEE
PoE StandardIEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Supply Type1/2(+), 3/6(-) End-span
PoE Power OutputPer Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)
PoE Power budget200W
SafetyFCC Part15 Class A,CE.RoHs
Environment specificationOperating temperature: -20℃~55℃,operating humidity: 5%~95%
  Storage temperature: -40℃~75℃,storage humidity: 5%~95%

Ordering  Information

HX316EP-2G2SFP16 Ports 10/100Mbps PoE switch with 2 Gigabit Uplink and 1 SFP,6KV surge protection,IEEE802.3af/at

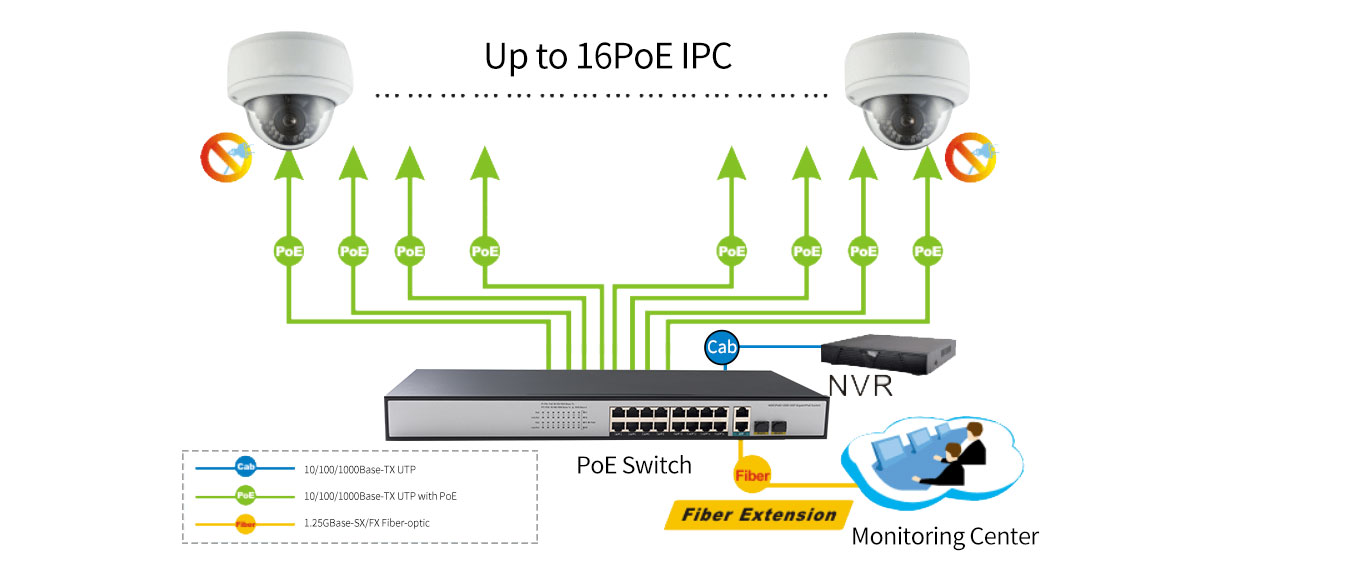

Perfectly Integrated Solution for PoE IP Security solution

This 16 port gigabit PoE switch provides power and data from a single point, using Power over Ethernet(PoE) over a single Cat5 cable. HX316GP-2G2SFP features 16ch 10/100/1000M PoE ports with 2 gigabit Combo Uplink and supply industry-standard IEEE 802.3af/at power. It also offers a simple, cost-effective and non-blocking wire-speed performance. It comes with a 19-inch rack mount metal housing, suitable for desktop deployment in Network Security application.

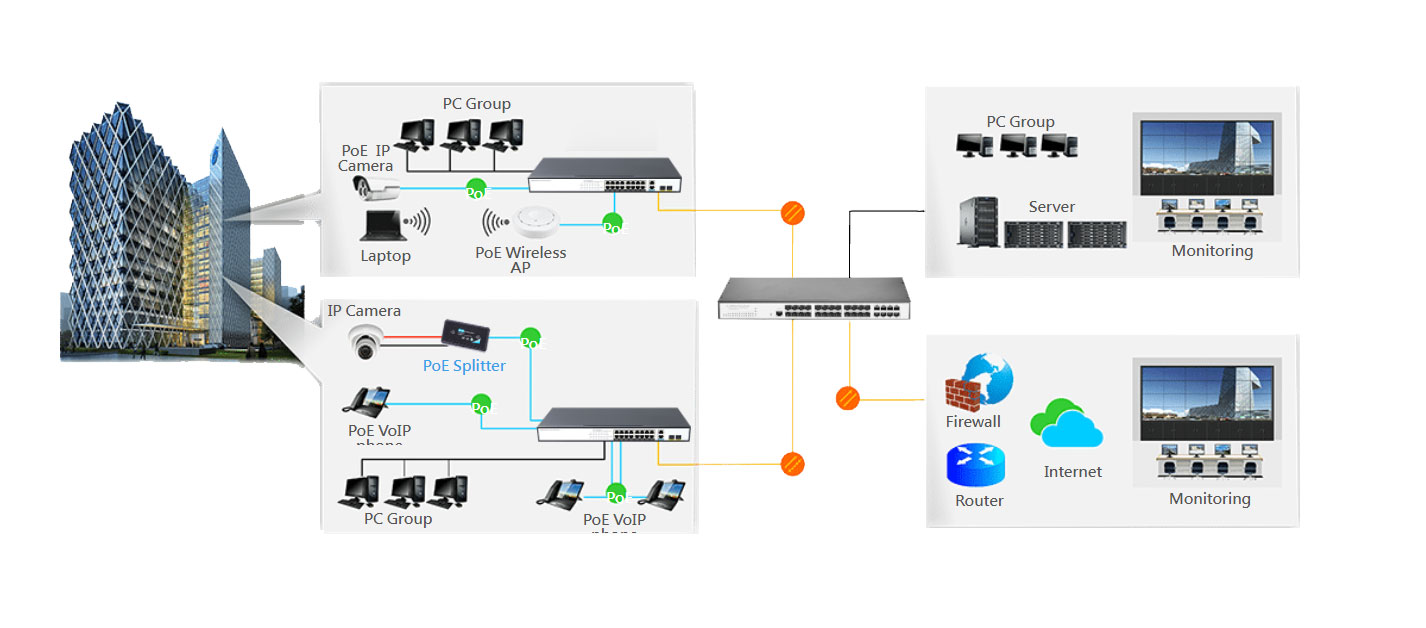

IP Office Department/Workgroup PoE Switch solution
To further expand the office premises, the additional IP telephones required could be installed at less cost via the PoE IP phone system, better than the traditional circuit wiring telephony system. The Hansun 16 port gigabit PoE switch HX316GP-2G2SFP PoE Switch helps enterprises to create an integrated data, voice, and powered network. The IEEE 802.3af/at compliant IP phones can be installed without the need of an additional power cable because the power can be provided via the standard Ethernet cable from the connected PoE switch, in this case,VoIp Phone deployment becomes more reliable and cost effective, thus helping enterprises save tremendous cost when upgrading from the traditional phone system to IP telephone communications infrastructure.

1.Are you factory or trading company?
We have 2 big factories, one is for fiber optic cable, the other one is for communication equipments,so we can offer you high quality ,factory price and fast delivery. Welcome to visit our factory, we can pick you up from airport.
2. Can I buy samples before placing orders?
Yes.We are happy to send you sample to test quality.
3.What is your lead time?
-For usual products, we have stock, we can ship out within 3 days. If we don’t have stock,It depends on the quantity , normally 7 days to 15 days.
4.What is your payment term?
30% as deposit, balance before delivery. Or balance againest copy of BL.
5.What is the shipping method?
-By sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
6.Can you offer ODM&OEM?
-Yes, we accept ODM&OEM.We have our own R&D team with 18 years experience.

The bulk cargo of optical fiber equipment can be transported by air or by sea; the whole container can be transported by sea. The shipping time for conventional goods is 3-5 days, and OEM goods are generally shipped within 7-10 days. All packaging is in accordance with customer requirements. Shipping choice
